EVX-ACM - Touch Screen Assist Call Only Master Station
- Accepts Assist Calls on a Shared Network
- 4.3” Full Colour Touch-screen
- Fully Compliant to BS5839-9:2021
- Integrated Assist Call with acknowledge meeting BS8300
- 1.5A EN54-4:A2 PSU
- Wall mount enclosure
- Expandable from 2 to 512 lines
- Inbuilt networking
Product Details
The unit can additionally accept up to eight lines of outstation, (Type A fixed phones, Type B refuge hands free points, emergency assist alarm point or jack points in Far East and Middle East applications) as required.
The touch-screen layout has four buttons allowing quick access to the main functions, and permanently displaying the number of current calls, alarms and faults. Emergency Assist Alarm calls can be acknowledged by pressing the Icon on screen (as required by BS8300) and will return to alarm if not reset within two minutes.
The EVC-ACM has inbuilt networking allowing it to form one of the 64 panels on a EVX network installation allowing a total of 512 outstations to be accommodated. Each panel can be a master station or EVX-EX8 network expander.
Power Supply and Charger
| AC input | 230VAC +/- 10% 50/60Hz |
| Internal supply | 5V, 16V, 27V DC |
| Supply | Monitored Open, Short, Fuses, High Impedance |
| Protection | Deep discharge, Short, Thermal |
| Battery type | 1 x 12V 7AH VRSLA |
| Mains fuse | 240V 1A HRC |
| Battery fuse | 750mA PTC |
| Charge current | 400mA |
Inputs
| Lines | 2-8 in 2 line blocks |
| Remote enable | Short to use |
| End of line | 10KΩ |
Controls
| Buttons | 3 Navigation keys |
| Touch-screen | 4.3” 272 x 480 x RGB |
| State LED | 1, RGB indicator |
| Fault LEDs | 3, PSU, System, General |
| Supply LEDs | 2, AC ,DC present |
Network Cables
| Type | Enhanced* |
| Cores | 2×2 core 1mm or 1.5mm |
| Distance | 500m |
Standards Compliance
| EMC | EN55103-1,EN55103-2 |
| LVD | EN60065 |
| Product Family | BS 5839-9:2021, BS9999, BS8300 |
| Dimensions (mm) | Panel | Bezel | Cutout |
| Height | 300 | 350 | 305 |
| Width | 220 | 270 | 225 |
| Depth | 95 | 1 | 85 |
| Weight | 6.5kg |
Technical documents such as Manuals, Software downloads, BIM families, and more are available via our Client / Support Portal. To access, please Sign up or Login to your account.
Sign up or login to your accountRelated Products
-
EVX-TMS – Touch Screen Master StationView Product -
EVX-228N – 2 to 8 Line Master StationView Product -
EVX-EX8 – System Expander PanelView Product -
EVX-RAP – Remote Alarm PanelView Product -
EVX-OSA – Emergency Telephone Type A OutstationView Product -
EVX-OSB-G Refuge Alarm Type B OutstationView Product -

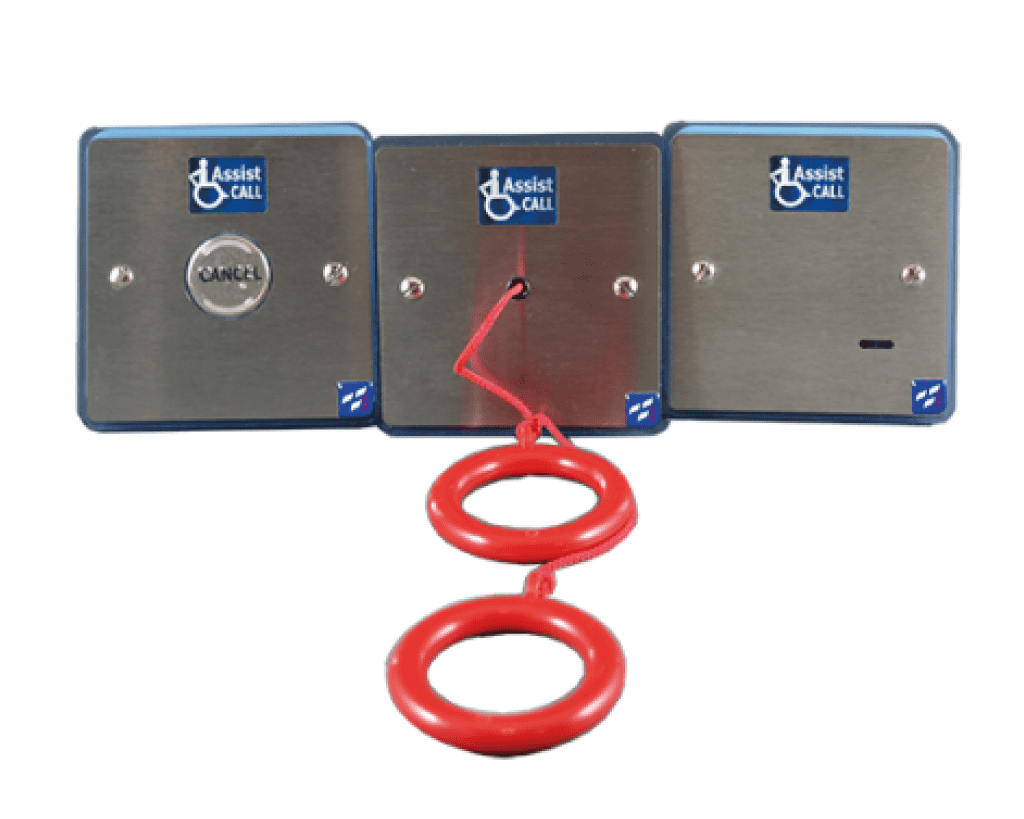

EVX-ACA – Assist Call WC Alarm KitView Product
