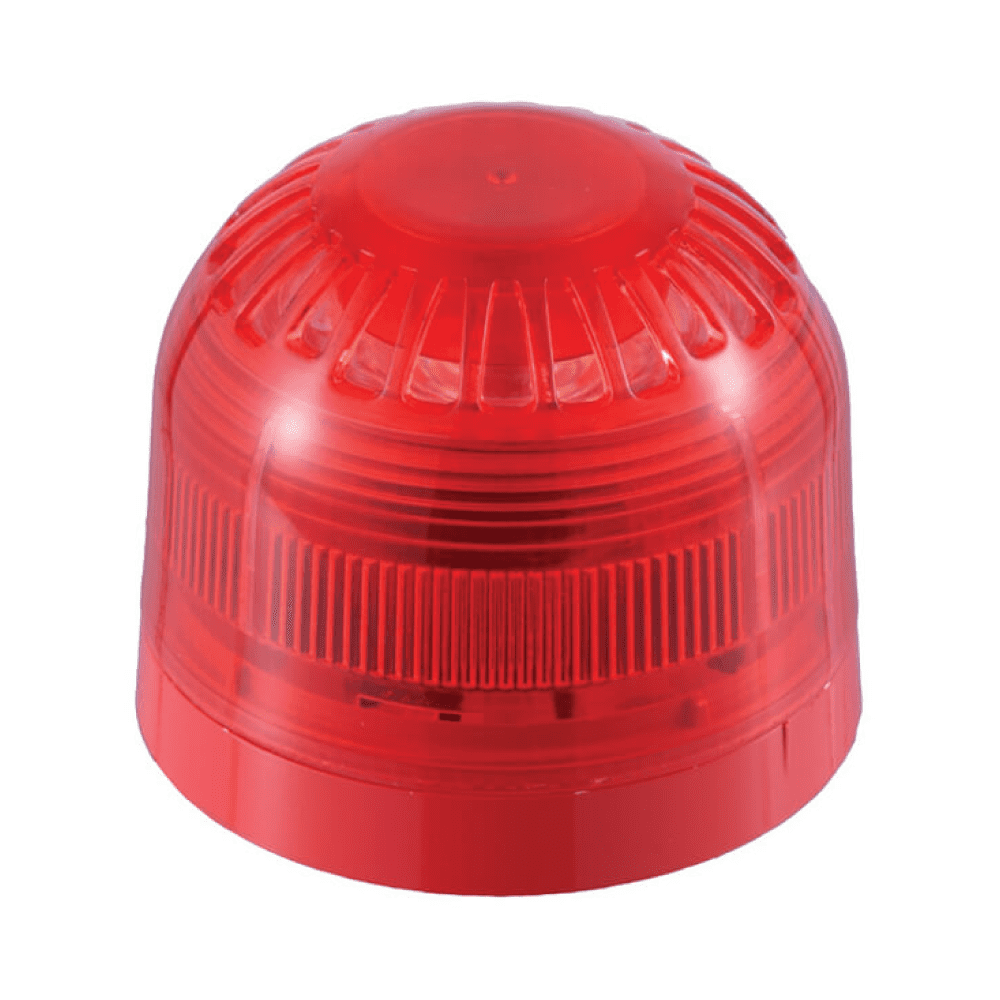

Sonos Alarm Sounder
Part No. Various
- Low current LED beacon
- Simple ‘First Fix’ installation
- Weatherproof to IP65 (deep base units)
- Choice of lens colours
- Tone and volume can be pre-set or adjusted off-base – 20dB
Product Details
A general-purpose electronic sounder for fire, security and industrial applications, the Sonos Sounder Beacon is certified to EN54. With the TimeSaver base, connections are made to the base during the initial wiring phase, resulting in faster and more reliable installation.
The sounder head ‘twists and clicks’ into the base on commissioning, avoiding the wiring and connection problems associated with traditional sounders.
With a choice of 32 tones, including all the major international standards, the Sonos Sounder Beacon has universal acceptance.
| Max sound output | 106dB max DC version 102dB max AC version |
| Alarm tones | 32 |
| Light source | High efficiency LED beacon |
| IP rating | 21 (shallow base) 65 (deep base) |
| Volume control | 8dB – DC Version 20dB – AC Version |
| Cable entry | Cut-outs (shallow base) 2 x 20mm glands (deep base) |
| Operating temp. | -25oC to +70oC (DC) -25oC to +55oC (AC) |
| Unit material | Polycarbonate |
| Lens colour | Amber, Red |
| Body colour | Red, White (DC only) |
| Base options | Shallow (DC only) Deep (AC & DC versions) |
| Unit weight | 0.22 (shallow base) 0.25 Kg (deep base) |
