10 Watt ABS Horn Loudspeaker
Part No. Various
- Excellent Voice Reproduction
- Suitable for Industrial Environments
- Ideal for Covering Large Areas
- ABS Moulding with UV inhibitors
Product Details
This waterproof plastic re-entrant horn speaker has been developed for clear speech reproduction. This unit is rated at 10 Watts.
The speaker is supplied complete with a fixed lead cable, allowing connection to a junction box on the field cabling system. This unit is suitable for internal and external use, delivering excellent speech quality to these areas.
| Power Handling | 10 watts |
| Rated Input | 100 volt |
| Transformer Tappings | 10, 5, 2.5, 1.25 watts |
| SPL (1w/1m) | 97dB |
| Max SPL (rated/1m) | 107dB |
| Frequency Response | 380Hz – 9kHz |
| Dispesion at 1k/4kHz | 180º / 45º |
| Dimensions (diameter x depth) | 138mm x 200mm |
| Material | ABS Plastic |
| Weight (inc. packaging) | 1.7 kg |
| Colour | Grey RAL 7035 |
| IP Rating | 66 |
| Stockcode | 200-004-06 |
Technical documents such as Manuals, Software downloads, BIM families, and more are available via our Client / Support Portal. To access, please Sign up or Login to your account.
Sign up or login to your accountRelated Products
-

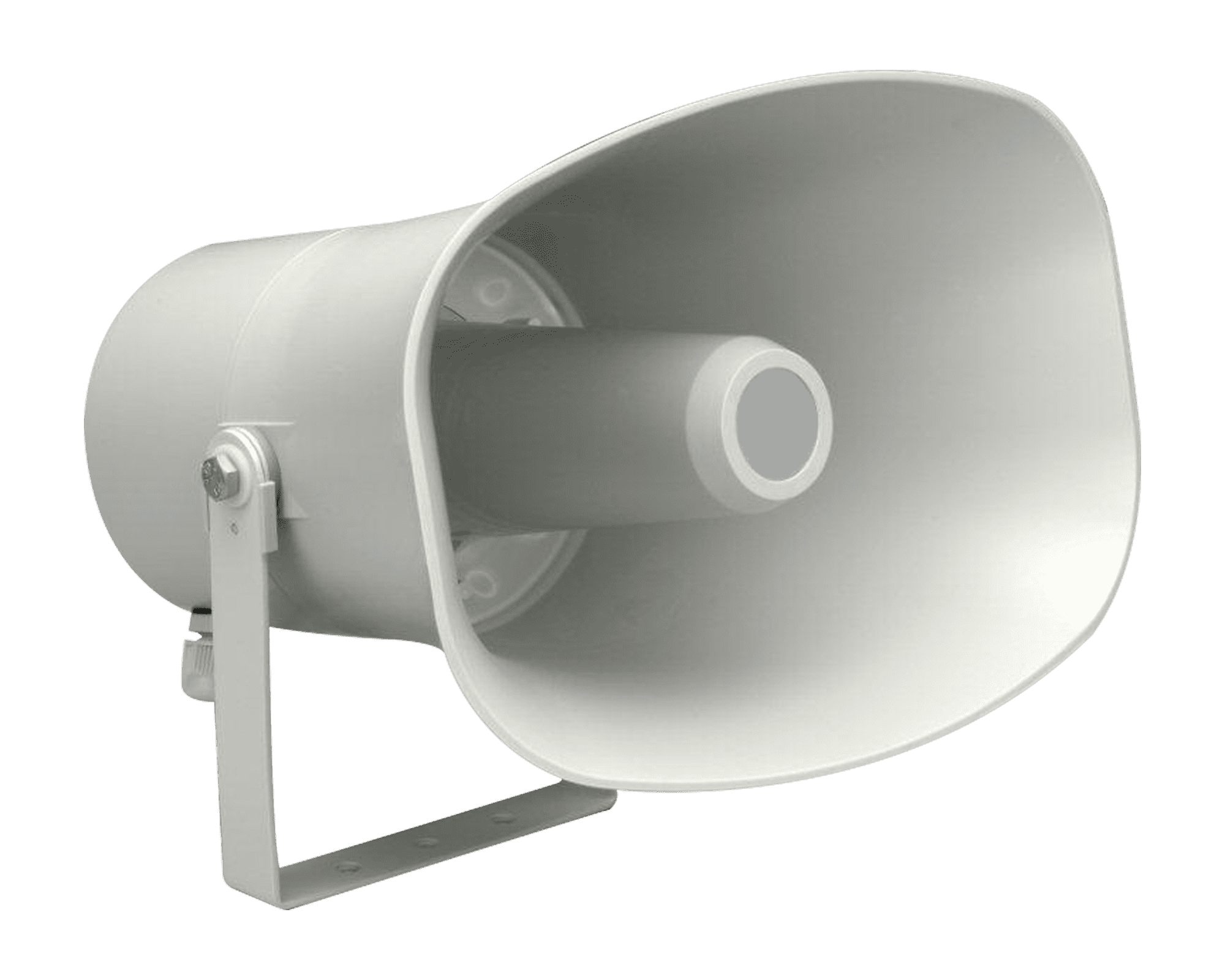

10 Watt ABS Horn Loudspeaker – EN54-24View Product -
20 Watt ABS Horn Loudspeaker – EN54-24View Product
-
30 Watt Music Horn LoudspeakerView Product -
30 Watt Music Horn Loudspeaker – EN54-24View Product
-

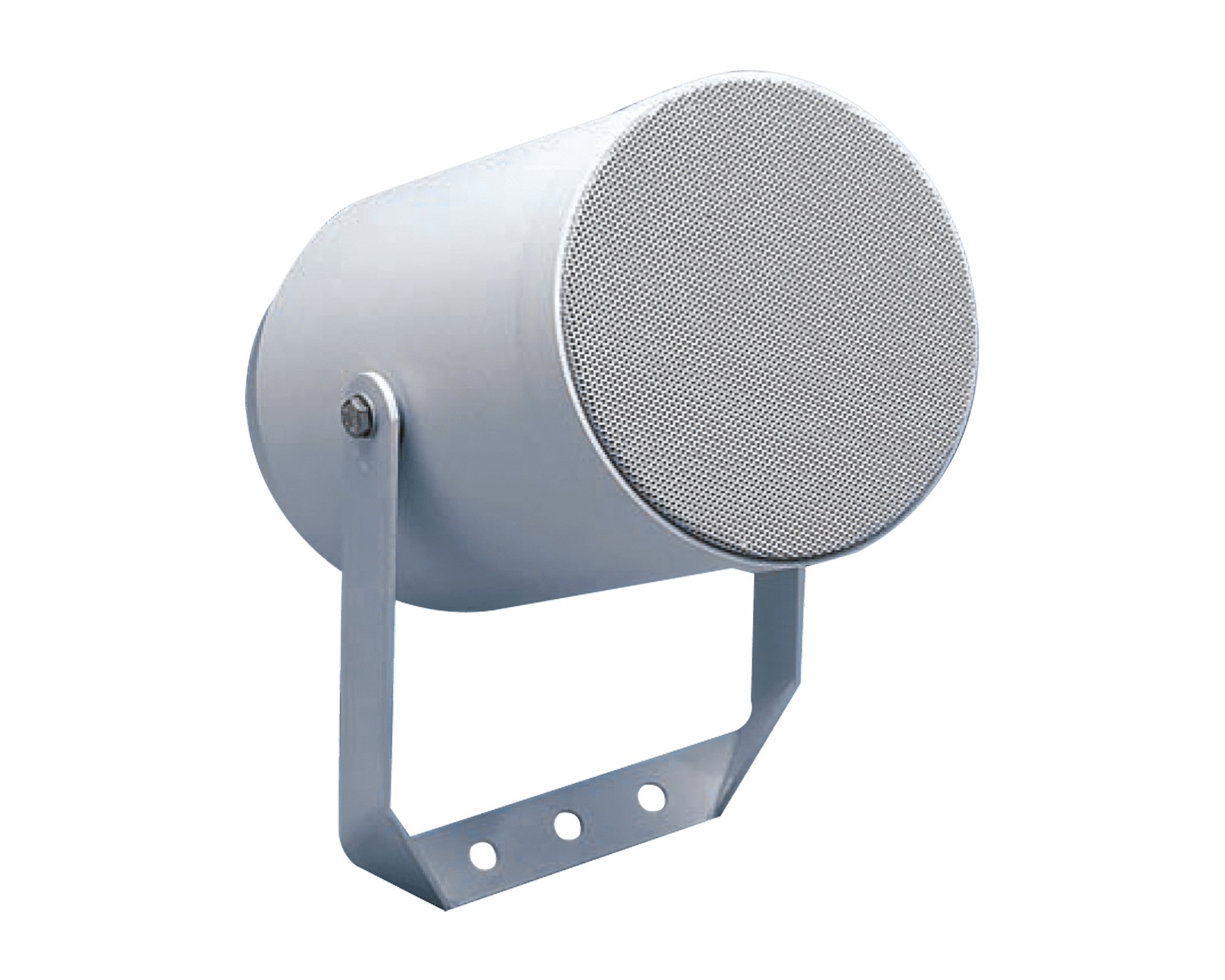

10 Watt ABS Projection Loudspeaker – EN54-24View Product
