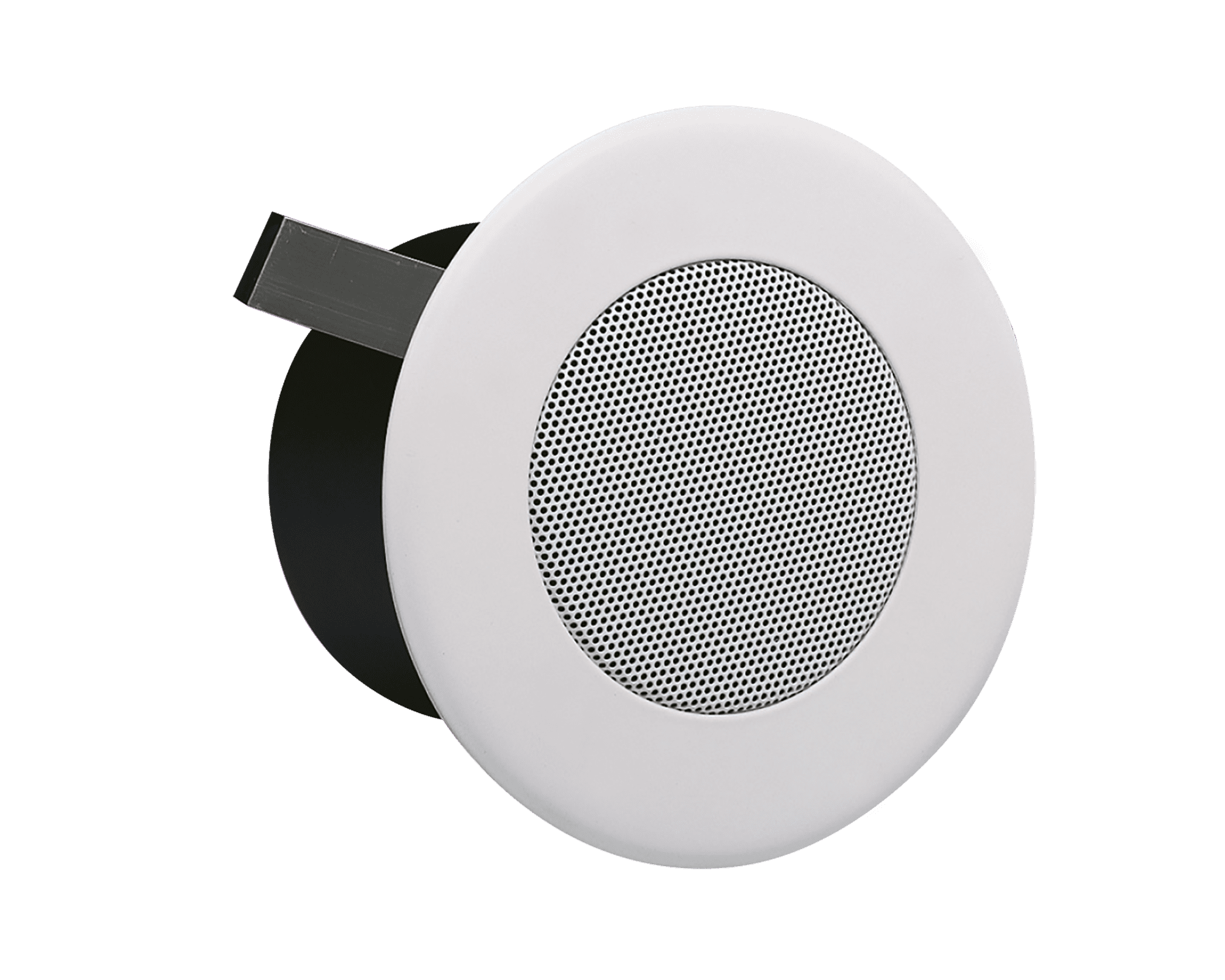

4 Watt Ceiling Loudspeaker - EN54-24
Part No. Various
- Steel Fire Dome
- 150°C Thermal Fuse
- Ceramic Terminal Block
- Fully compliant with EN54-24
- Cert No: 0359-CPD-0120 Type A
Product Details
4-inch, flush mount ceiling speaker with an innovative fitting system for fast and simple installation.
Cables are glanded into the fire dome and terminated on the 3-way terminal block on the speaker. The dome is then secured to the speaker and the complete unit is then installed into the ceiling.
| Power Handling | 4 watts |
| Rated Input | 100 volt |
| Transformer Tappings | 4, 2, 1, 0.5, 0.25 watts |
| SPL (1w/1m) | 83dB* |
| Max SPL (rated/1m) | 89dB* |
| Frequency Response | 200Hz – 18kHz |
| Dispersion at 1k/2kHz | 180° / 180º |
| Dimensions (diameter x depth) | 132mm x 101mm |
| Cutout Size (diameter) | 119mm |
| Material | Steel |
| Weight (inc. packaging) | 0.92 kg |
| Colour | White RAL9016 |
| Stock Code | SP1908 |
Technical documents such as Manuals, Software downloads, BIM families, and more are available via our Client / Support Portal. To access, please Sign up or Login to your account.
